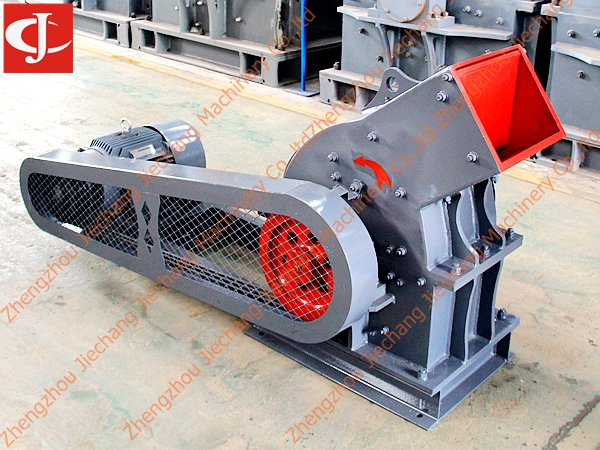

Hammer Crusher

Ask for quote

Description

Overview
Hammer crusher (hammer broken) by high-speed rotation of the hammer and the material impact surface broken materials, hammer crusher for crushing all kinds of hard and abrasive weak materials. The compressive strength of the material does not exceed 100MPa, moisture content less than 15%.

Application
Hammer crusher is suitable for the fine crushing of limestone, coal or other medium hard brittle materials in metallurgical industry, building materials industry, chemical industry and hydropower industry.







Feature

1.High production and high crushing ratio.
2. Low power consumption, homogeneous particle size.
3. Simple, compact and light mechanical structure.
4. Low investment cost, easy management.


Product Model

Model Feeding size (mm) Rotor diameter (mm) Motor power (Kw) Capacity (t/h) Weight (Kg)
PCZ-1308 850X800 1310X790 132 100-160 15.6
PCZ-1510 1000X850 1500X950 132X2 160-210 17.1
PCZ-1512 1210X900 1500X1160 160X2 220-270 18.9
PCZ-1615 1500X1200 1650X1452 200X2 360-420 28
PCZ-2015 1500X1400 2000X1500 250X2 450-500 56
