High Pressure Suspension Mill

Ask for quote


High Pressure Suspension Mill is based on many years research on the traditional grinding mills, the High pressure suspension mill got national patent and CE certificate, features of high efficiency and energy saving. It is suitable for grinding mineral to powder, which is widely used in the fields of metallurgy, building materials, chemical and mining industry and so on.

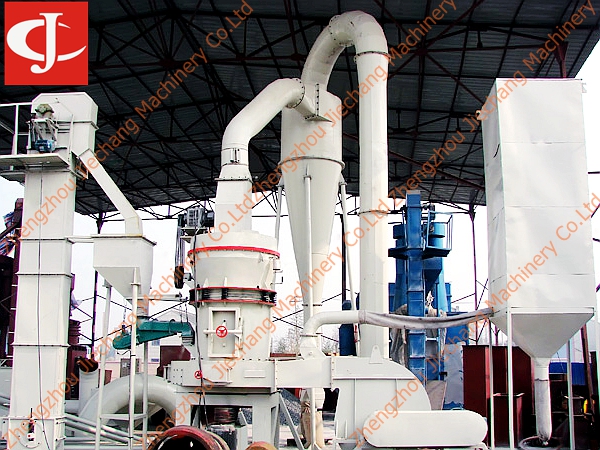

High Pressure Suspension mill is mainly made up of the mainframe, separator, blower, finished powder cyclone collector, bag filter and connecting pipes, etc. High Pressure Suspension Mill can also be equipped with accessory equipment like crusher, bucket elevators, hopper, electro-magnetic vibrating feeder and switch box, etc. Inside the mainframe, the roller subassembly is suspended on the roller suspender through horizontal supporting axis, and the roller suspender fixed up with the main shaft and shovel stand. Located outside of the roller bearing house, the pressure springs make rollers push down the inside surface of ring through horizontal supporting axis. Shovels installed on the shovel stand and rollers rotate together when the motor drives main shaft through transmission device and the rollers roll appressed the inside surface of ring and rotate at the same time. The separator impellers are driven by motor through transmission device to rotate, more higher the speed of separator impellor, more fine the powders been separated.

1.Low production cost, good stability, high performance
Foundation bed made of high strength and anti-crack ductile iron, the central body is connected to the foundation bed using a flexible connection, non-rigid contact, effectively prevent vibration generated by grinding chamber passed to the airframe and analysis machine causing damage to components, and also improve the accuracy of analysis.
2.Quality reducer, overload protection
Made of high quality gear, smooth operation, reliable performance, improve machine stability. Reducer and motor with V-belt transmission of power conducive to overload protection.
3.Analysis machine adopts frequency control
Analysis machine adopts frequency control, more energy efficient and more precision than electromagnetic speed. The process control good mobility and high degree of automation.
4.Cyclone powder collector
High collection powder efficiency, low investment costs, collection powder process can be isolated from most of the fine dust. Cyclone powder collector sets powder quantitative discharge, effectively reducing the pressure loss of the entire wind power systems. Users can also optional "bypass powder collector," according to the dust content in the finished product, reduce dust content.

High Pressure Suspension Mill

Product Model

Model Roller No. Roller Size (mm) Grind Ring Inner Dia. Height & Length(mm) Feeding Size (mm) Output Size (mm) Capacity (t/h) Power (Kw) Overall Dimension (mm)
YGM65 3 210x150 650x150 ≤ 15 0.613-0.033 0.4-1.8 15 4100x3300x4500
YGM75 3 260x150 780x150 ≤ 15 0.613-0.033 1-3 18.5 4300x3500x5100
YGM85 3 270x140 830x150 ≤ 20 0.613-0.033 1.2-4 22 5300x4100x5200
YGM85B 3 270x140 830x150 ≤ 20 0.613-0.03 1.2-3.5 22 5300x4100x5200
YGM95 4 310x170 950x170 ≤ 25 0.613-0.033 2.1-5.6 37 7100x5900x7900
YGM130 5 410x210 1280x210 ≤ 30 0.613-0.033 2.5-9.5 75 7900x8000x9700
YGM160 6 440x270 1600x270 ≤ 35 0.613-0.033 8-16 132 12550x5700x8355
