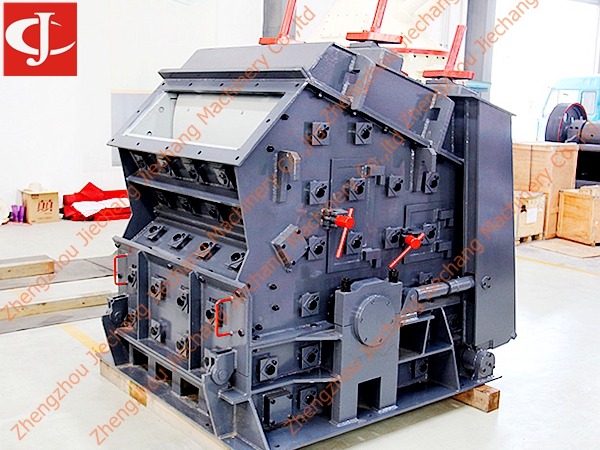

Impact Crusher

Ask for quote


The impact crusher are ideal for secondary crushing. This series of impact crusher are optimized after adopting advanced techniques. Impact Crusher can crush granite, basalt, bluestone, etc .impact crusher features: big reduction ratio, high crushing efficiency, and convenient maintenance.

Dealing with the material with the side length 500mm, not more than 320Mpa anti-pressure strength, impact crusher can be widely used in the first and secondary crushing process. Impact crusher is widely used in crushing plant for highway construction, hydraulic engineering and architecture, mining industry etc for crushing quartz, basalt, shaly, kaolin, limestone, marble etc.



1.Cubic shaped end products
2.Adjustable end products sizes, simple crushing process
3.High chrome and abrasion resistant blow bar, powerful impacting force
4.Non-key connected connected, easy maintenance, economical reliable
5.Compact construction, high efficiency.


Product Model

Model Specification (mm) Feeding opening (mm) Max feeding size of material (mm) Capacity (t/h) Motor Power (kW) Weight (kg)
PF-0607 644x740 320x770 100 10-20 30 4300
PF-0807 850x700 400x730 300 15-30 30-45 6500
PF-1008 1000x800 400x830 300 30-60 37-55 10500
PF-1010 1000x1050 400x1080 350 50-90 55-75 12500
PF-1210 1250x1050 400x1080 350 70-130 90-110 15800
PF-1212 1250x1250 400x1300 350 100-150 110-132 17500
PF-1214 1250x1400 400x1430 400 100-180 132-160 19800
PF-1315 1320x1500 860x1520 500 160-250 180-260 24000
PF-1320 1320x2000 400x2030 500 300-350 300-375 29000
