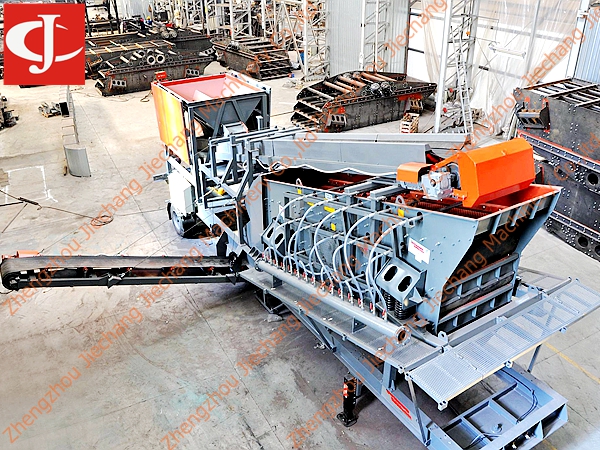

Mobile Vibrating Screen

Ask for quote

Description



Overview
The mobile vibrating screens can be configured to jaw, impact, cone and vsi.It is high performance and cost effective.And it will maximize your quarry,mining and construction business profits.The performance range for mobile screens nowadays extends to 1,000 t/h depending on the type and composition of the feed material and the grading ranges to be screened.

Application
The mobile vibrating screens are widely used in road &bridge construction, building, mining and other fields.

Feature
1. Excellent performance of power system. It is adopts Cummins diesel engine, low oil consumption, low noise. And we can equip a low-temperature preheating device sol that the equipment is able to start at -25oC low temperature environment.
2. Ship-shaped steel chassis. It is of high intensity, low on ground pressure etc. And it is easy to be transported on different terrains like mountain and marsh.
3. High-torque moving motor. It is of strong driving force and perfect performance, thus providing reliable power source to the running system.
4. Servo -system. It is of easy operation and precise control, and can realize Continuously Variable Transmission.
5. Efficient and mature crushing and screening equipment. The crushing and screening plant uses our company's advanced products so that ensure the good quality of complete set of equipment.



Product Model

Technical Data//Model Y3S1848 Y3S1860 Y3S2160
Transportation size (mm) 10100x2800x4350 11100x2820x4350 11100x3100x4350
Weight(t) 16 18 19
Tire Configuration Dualaxial Dualaxial Dualaxial
Capacity(T/h) 50-250 60-300 80-400
Belt Conveyor Under Vibrating Screen B800x7M B800x8M B1000x8M
Vibrating Screen 3YZS1848 3YZS1860 3YZS2160
Electric control Standard control box + control panel control box + control panel control box + control panel
Optional Control box + LCD Control box + LCD Control box + LCD
Hydraulic leg Standard 4 4 4
Optional 2 2 2
Hydraulic cyclinder Standard 0 0 0
Optional 2 2 2
Genset (optional) (Kw) 120 120 120
