Description
Overview

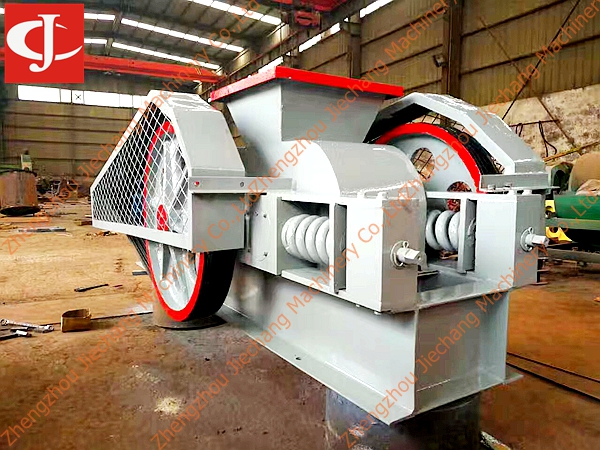

Roll crusher, with other names of roller crusher, teeth roll crusher or double roll crusher, is mainly used for secondary crushing or tertiary crushing of raw materials such as coal, coal gangue, coke, limestone, sulfur ore, phosphate rock and other materials. Its crushing way is roll extrusion, and the compression strength of to-be-broken material does not exceed 80PaM.
Application
Roller crusher is widely used for crushing high hard and medium hard materials in such industrial departments such as metallurgy, building material and refractory.
Structure
1. Movable roller 2. Fixed roller 3. Feeding stone 4. Driving shaft
5. Fixed bearing 6. Spring 7. Crusher frame
Feature
1.Big reduction ratio, Big throughput
2.Cubic shape after the crushing of materials
3.Small granularity of materials
4.Flexible,convenient and strong mobility
5.Easy operation, Convenient maintenance
6.Low noise, Little powder dust
7.Reliable performance
Product Model
Model | Feeding size(mm) | Discharging granularity (mm) | Capacity (t/h) | Motor Power (kW) | Dimensions (LxWxH) (mm) | Weight (kg) |
2PG-400*250 | <=25 | 2-8 | 5-10 | 11 | 1215x834x830 | 1100 |
2PG-610*400 | <=40 | 1-20 | 13-40 | 30 | 3700x1600x1100 | 3500 |
2PG-750*500 | <=40 | 2-20 | 20-55 | 37 | 2530x3265x1316 | 12250 |
2PG-900*500 | <=40 | 3-40 | 60-125 | 44 | 2750x1790x2065 | 14000 |
